QUIENES SOMOS
BUHLMETAL OFRECE SOLUCIONES INTEGRALES COMO EMPRESA DE COMERCIALIZACIÓN Y SERVICIOS, PRESENTE EN LATINOAMÉRICA DESDE SU SEDE EN BUENOS AIRESNacida como la continuidad de Buhlmann en Argentina y como actuales socios del grupo, estamos en constante expansión para brindar lo que el cliente necesita. Contamos con más de 55.000 tn en acero, lo que nos permite reaccionar ante necesidades de corto plazo o demandas para proyectos, garantizando el abastecimiento y la atención permanente postventa.
COMO LO HACEMOS
Como socio consultor, Buhlmetal se involucra en la planificación de proyectos, atención de emergencias y provisión de repuestos. Logística de entrega y abastecimiento de materiales y productos difíciles de conseguir minimizando los plazos de entrega.
Acompañamos al mercado, accionando frente a los diversos cambios que presenta y a las mayores exigencias de nuestros clientes, pequeñas, medianas y grandes empresas.
Acompañamos al mercado, accionando frente a los diversos cambios que presenta y a las mayores exigencias de nuestros clientes, pequeñas, medianas y grandes empresas.
TU VENTAJA: NUESTRA CALIDAD Y DIVERSIDAD
NUESTROS PRODUCTOS
Todo lo que tu proyecto necesita en un solo lugar.Te acompañamos en tus proyectos diarios, y en los mantenimiento programados para tu empresa.
Disponemos de stock desde el acero al carbono, hasta las más altas aleaciones y aceros especiales.
01.

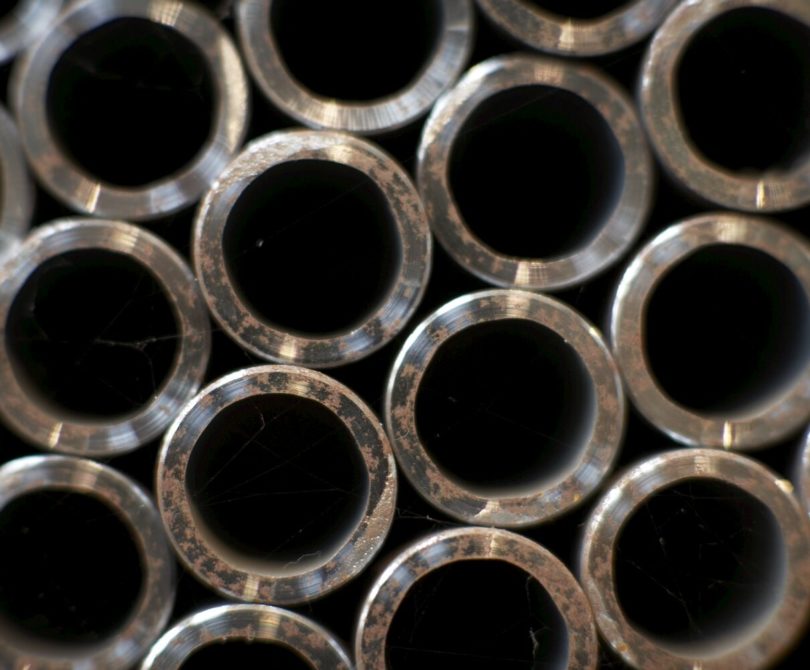

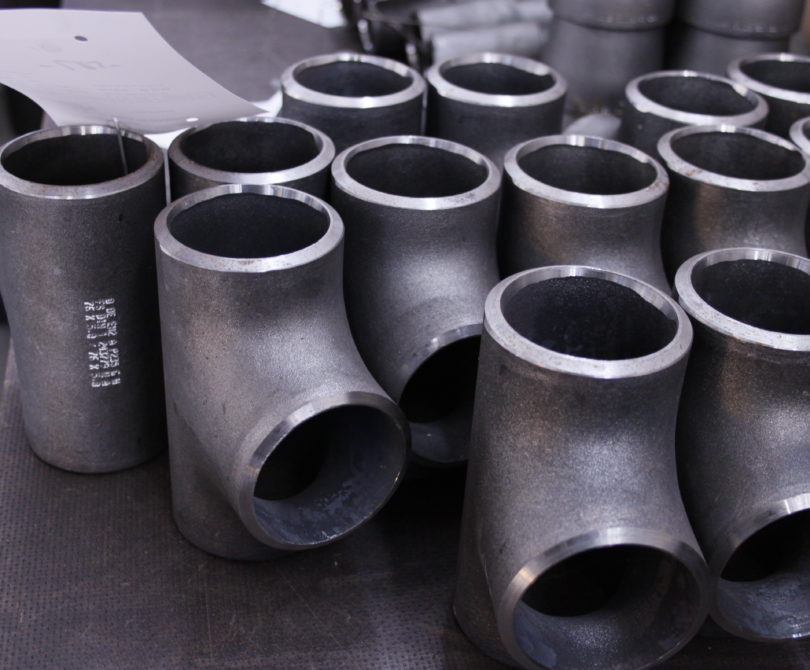

TUBOS Y ACCESORIOS
Todos los tubos y accesorios de acero están disponibles en espesores de pared estándar y no estándar, así como sin costura o soldados en todos los materiales:- DIN / EN PIPES
- ASTM / ASME / API PIPES
- DIN / EN FITTINGS
- ASTM / ASME FITTINGS
- ASTM / ASME HIGH PRESSURE FITTINGS
02.

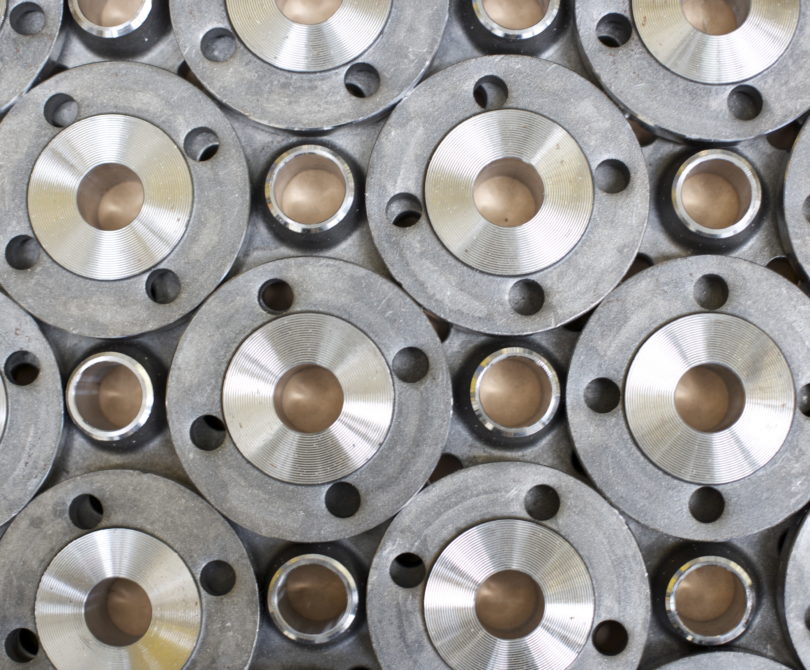

BRIDAS
La gama de existencias también incluye todas las bridas estándar y no standard en todos los rangos de presión y superficies de sellado en todos los materiales:- DIN / EN FLANGES
- ASTM / ASME / API FLANGES
03.
OTROS MATERIALES
También le ofrecemos productos fabricados en cobre, latón, CuNi, aluminio y acero.Buhlmetal también proporciona varios extras como accesorios especiales basados en dibujos o tubos de acero redondo. Las piezas, los chaflanes, el rebordeado, el torneado y los trabajos especiales son extras comunes que están disponibles bajo pedido.
Tabla de Productos
EN
| Pipe | Fitting | Flange | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard | Material short name | Material number | Test class | Comment | Standard | Material | Material number | Standard | Material | Material number |
| EN 10216-2 / 10217-5 | P235GH | 1.0345 | TC1 | EN 10253-2 | P235GH | 1.0345 | EN 1092-1 | P250GH | 1.0460 | |
| EN 10216-2 | P235GH | 1.0345 | TC2 | With ultrasonic test | EN 10253-2 | P265GH | 1.0345 | EN 1092-1 | P250GH | 1.0460 |
| EN 10216-2 | P265GH | 1.0425 | TC1 | EN 10253-2 | P265GH | 1.0425 | EN 1092-1 | P280GH | 1.0426 | |
| EN 10216-2 | P265GH | 1.0425 | TC2 | With ultrasonic test | EN 10253-2 | P265GH | 1.0425 | EN 1092-1 | P280GH | 1.0426 |
| EN 10216-2 | 16Mo3 | 1.5415 | TC2 | With ultrasonic test | EN 10253-2 | 16Mo3 | 1.5415 | EN 1092-1 | 16Mo3 | 1.5415 |
| EN 10216-2 | 13CrMo4-5 | 1.7335 | TC2 | With ultrasonic test | EN 10253-2 | 13CrMo4-5 | 1.7335 | EN 1092-1 | 13CrMo4-5 | 1.7355 |
| EN 10216-2 | 10CrMo9-10 | 1.7380 | TC2 | With ultrasonic test | EN 10253-2 | 10CrMo9-10 | 1.7380 | EN 1092-1 | 10CrMo9-10 | 1.7380 |
| EN 10216-2 | 15NiCuMoNb5-6-4 | 1.6368 | TC2 | WB36 With ultrasonic test |
EN 10253-2 | 15niCuMoNb5-6-4 | 1.6368 | EN 1092-1 | 15niCuMoNb5-6-4 | 1.6368 |
| EN 10216-2 | X20CrMoV11-1 | 1.4922 | TC2 | With ultrasonic test | EN 10253-2 | X20crMoV11-1 | 1.4922 | EN 1092-1 | X20crMoV11-1 | 1.4922 |
| EN 10216-2 | X10CrMoVNb9-1 | 1.4903 | TC2 | With ultrasonic test | EN 10253-2 | X10CrMoVNb9-1 | 1.4903 | EN 1092-1 | X10CrMoVNb9-1 | 1.4903 |
| EN 10216-2 | X10CrWMoVNb9-2 | 1.4901 | TC2 | With ultrasonic test | EN 10253-2 | X10CrWoMoVNb9-2 | 1.4901 | EN 1092-1 | X10CrWoMoVNb9-2 | 1.4901 |
| VDTuev 560/2 | X12CrCoWMoVNb12-2-2 | 1.4915 | TC2 | VM12 | ||||||
| EN 10216-4 | P215NL | 1.0451 | TC1 | Low temperature | EN 10253-2 | P215NL | 1.0451 | EN 1092-1 | P355QH1 | 1.0571 |
| EN 10216-4 | P255QL | 1.0452 | TC1 | Low temperature | EN 10253-2 | P255QL | 1.0452 | EN 1092-1 | P355QH1 | 1.0571 |
| EN 10216-4 | P265NL | 1.0453 | TC1 | Low temperature | EN 10253-2 | P355QH1 | 1.0571 | |||
| Steel line pipes | Fitting | Flange | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard | Material short name | Material number | Comment | Standard | Material | Material number | Standard | Material | Material number |
| EN 10208-1 | L235GA | 1.0458 | welded | EN 10253-2 | P235GH | 1.0345 | EN 1092-1 / ANSI B16.5 | P250GH | 1.0460 |
| EN 10208-1 | L290GA | 1.0483 | welded | EN 10253-2 | L290NB | 1.0484 | EN 1092-1 / ANSI B16.5 | P355NH | 1.0565 |
| EN 10208-2 | L245NB | 1.0457 | welded | EN 1092-1 / ANSI B16.5 | P250GH | 1.0460 | |||
| EN 10208-2 | L245MB | 1.0418 | welded | EN 1092-1 / ANSI B16.5 | P250GH | 1.0460 | |||
| EN 10208-2 | L290NB | 1.0484 | seamless | EN 10253-2 | L290NB | 1.0484 | EN 1092-1 / ANSI B16.5 | P355NH | 1.0565 |
| EN 10208-2 | L360NB | 1.0582 | seamless / welded | EN 10253-2 | L2360NB | 1.0582 | EN 1092-1 / ANSI B16.5 | P355NH | 1.0565 |
| EN 10208-2 | L360MB | 1.0578 | welded | EN 1092-1 / ANSI B16.5 | P355NH | 1.0565 | |||
| EN 10208-2 | L360QB | 1.8948 | seamless | EN 10253-2 | L360QB | 1.8948 | EN 1092-1 / ANSI B16.5 | P355NH | 1.0565 |
| EN 10208-2 | L415NB | 1.8972 | seamless / welded | EN 10253-2 | L415NB | 1.8932 | EN 1092-1 / ANSI B16.5 | P420NH | 1.8932 |
| EN 10208-2 | L415MB | 1.8973 | welded | EN 10253-2 | L415QB | 1.8947 | EN 1092-1 / ANSI B16.5 | P420NH | 1.8932 |
| EN 10208-2 | L415QB | 1.8947 | seamless | EN 10253-2 | L415QB | 1.8947 | EN 1092-1 / ANSI B16.5 | P420NH | 1.8932 |
| EN 10208-2 | L450MB | 1.8975 | welded | EN 10253-2 | L450QB | 1.8952 | |||
| EN 10208-2 | L450QB | 1.8952 | seamless | EN 10253-2 | L450QB | 1.8952 | |||
| EN 10208-2 | L485MB | 1.8977 | welded | EN 10253-2 | L485QB | 1.8955 | |||
| EN 10208-2 | L485QB | 1.8955 | seamless | EN 10253-2 | L485QB | 1.8955 | |||
| EN 10216-3 | P275NL1 | 1.0488 | seamless | ||||||
| EN 10216-3 | P275NL2 | 1.1104 | seamless | ||||||
| EN 10216-3 | P355NH | 1.0565 | seamless | EN 10253-2 | P355NH | 1.0565 | EN 1092-1 / ANSI B16.5 | P355NH | 1.0565 |
| EN 10216-3 | P355NL1 | 1.0566 | seamless | EN 10253-2 | P355NL1 | 1.0566 | EN 1092-1 / ANSI B16.5 | P355NL1 | 1.0566 |
| EN 10216-3 | P355NL2 | 1.1106 | seamless | ||||||
| EN 10216-3 | P460NH | 1.8935 | seamless | EN 10253-2 | P460NH | 1.8935 | |||
| EN 10216-3 | P460NL1 | 1.8915 | seamless | EN 10253-2 | P460NL1 | 1.8915 | |||
| EN 10216-3 | P460NL2 | 1.8918 | seamless | EN 10253-2 | P460NL2 | 1.8918 | |||
Pipes are available in single and double lengths.
Pipes, fittings and flanges are available in all standard and special – e.g. extremely thick-walled – dimensions.
ASTM / ASME
| Pipe | Fitting | Flange | ||||
|---|---|---|---|---|---|---|
| Standard | Material | Comment | Standard | Material | Standard | Material |
| A/SA106 | Grade B | A/SA234 | WPB | A/SA105 | A105N | |
| A/SA106 | Grade C | A/SA234 | WPC | A/SA105 | A105N | |
| A/SA335 / 209 | P1 / T1 | A/SA234 | WP1 | A/SA182 | F1 | |
| A/SA335 / 213 | P5 / T5 | A/SA234 | WP5 | A/SA182 | F5 | |
| A/SA335 / 213 | P9 / T9 | A/SA234 | WP9 | A/SA182 | F9 | |
| A/SA335 / 213 | P11 / T11 | A/SA234 | WP11 | A/SA182 | F11 | |
| A/SA335 / 213 | P12 / T12 | A/SA234 | WP12 | A/SA182 | F12 | |
| A/SA335 / 213 | P22 / T22 | A/SA234 | WP22 | A/SA182 | F22 | |
| A/SA335 / 213 | P91 / T91 | A/SA234 | WP91 | A/SA182 | F91 | |
| A/SA335 / 213 | P92 / T92 | A/SA234 | WP92 | A/SA182 | F92 | |
| A/SA333 | Grade 3 | Low temperature | A/SA420 | WPL3 | A/SA350 | LF3 |
| A/SA333 | Grade 6 | Low temperature | A/SA420 | WPL6 | A/SA350 | LF2 |
Pipes are available in single and double lengths.
Pipes, fittings and flanges are available in all standard and special – e.g. extremely thick-walled – dimensions.
API
| Steel line pipes | Fitting | Flansch | |||||
|---|---|---|---|---|---|---|---|
| Standard | Material | Test class | Comment | Standard | Material | Standard | Material |
| API 5L | Grade B | PSL1 | welded | A234 / ANSI B16.9 | WPB | A105 / ANSI B16.5 | A105N |
| API 5L | X52 | PSL2 | welded | A860 / ANSI B16.9 | WPHY52 | A694 / ANSI B16.5 | F52 |
| API 5L | X60 | PSL2 | welded | A860 / ANSI B16.9 | WPHY60 | A694 / ANSI B16.5 | F60 |
| API 5L | X65 | PSL2 | welded | A860 / ANSI B16.9 | WPHY65 | A694 / ANSI B16.5 | F65 |
| API 5L | X70 | PSL2 | welded | A860 / ANSI B16.9 | WPHY70 | A694 / ANSI B16.5 | F70 |
| API 5L | Grade B | PSL1 | seamless | A234 / ANSI B16.9 | WPB | A105 / ANSI B16.5 | A105N |
| API 5L | X42N | PSL1 | seamless | A860 / ANSI B16.9 | WPHY42 | A694 / ANSI B16.5 | F42 |
| API 5L | X52N | PSL1 | seamless | A860 / ANSI B16.9 | WPHY52 | A694 / ANSI B16.5 | F52 |
| API 5L | X52N | PSL2 | seamless | A860 / ANSI B16.9 | WPHY52 | A694 / ANSI B16.5 | F52 |
| API 5L | X60Q | PSL2 | seamless | A860 / ANSI B16.9 | WPHY60 | A694 / ANSI B16.5 | F60Q |
| API 5L | X65Q | PSL2 | seamless | A860 / ANSI B16.9 | WPHY65 | A694 / ANSI B16.5 | F65Q |
| API 5L | X70Q | PSL2 | seamless | A860 / ANSI B16.9 | WPHY70 | A694 / ANSI B16.5 | F70Q |
Pipes are available in single and double lengths.
Pipes, fittings and flanges are available in all standard and special – e.g. extremely thick-walled – dimensions.
STAINLESS STEEL
| Steel line pipes | Fitting | Flange | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard | Material | Material number | Test class | Comment | Standard | Material | Material number | Standard | Material | Material number |
| EN 10216-5 | X5CrNi18-10 | 1.4301 | TC2 / TC1 | EN 10253-4 | X5CrNi18-10 | 1.4301 | EN 1092-1 | X5CrNi18-10 | 1.4301 | |
| EN 10216-5 | X2CrNi19-10 | 1.4306 | TC2 / TC1 | seamless | EN 10253-4 | X2CrNi19-10 | 1.4306 | EN 1092-1 | X2CrNi19-10 | 1.4306 |
| EN 10216-5 | X5CrNiMo17-12-2 | 1.4401 | TC2 / TC1 | EN 10253-4 | X5CrNiMo17-12-2 | 1.4401 | EN 1092-1 | X5CrNiMo17-12-2 | 1.4401 | |
| EN 10216-5 | X2CrNiMo17-12-2 | 1.4404 | TC2 / TC1 | EN 10253-4 | X2CrNiMo17-12-2 | 1.4404 | EN 1092-1 | X2CrNiMo17-12-2 | 1.4404 | |
| EN 10216-5 | X2CrNiMoN22-5-3 | 1.4462 | TC2 | Duplex | EN 10253-4 | X2CrNiMoN22-5-3 | 1.4462 | EN 1092-1 | X2CrNiMoN22-5-3 | 1.4462 |
| EN 10216-5 | X1NiCrMoCu25-20-5 | 1.4539 | TC2 | Superaustenit | EN 10253-4 | X1NiCrMoCu25-20-5 | 1.4539 | EN 1092-1 | X1NiCrMoCu25-20-5 | 1.4539 |
| EN 10216-5 | X6CrNiTi18-10 | 1.4541 | TC2 | EN 10253-4 | X6CrNiTi18-10 | 1.4541 | EN 1092-1 | X6CrNiTi18-10 | 1.4541 | |
| EN 10216-5 | X6CrNiMoTi17-12-2 | 1.4571 | TC2 | EN 10253-4 | X6CrNiMoTi17-12-2 | 1.4571 | EN 1092-1 | X6CrNiMoTi17-12-2 | 1.4571 | |
| EN 10216-5 | X6CrNiNb18-10 | 1.4550 | TC1 | seamless | EN 10253-4 | X6CrNiNb18-10 | 1.4550 | EN1092-1 | X6CrNiNb18-10 | 1.4550 |
| EN 10217-7 | X5CrNi18-10 | 1.4301 | TC1 | EN 10253-4 | X5CrNi18-10 | 1.4301 | EN 1092-1 | X5CrNi18-10 | 1.4301 | |
| EN 10217-7 | X2CrNi18-9 | 1.4307 | TC1 | EN 10253-4 | X2CrNi18-9 | 1.4307 | EN 1092-1 | X2CrNi18-9 | 1.4307 | |
| EN 10217-7 | X5CrNiMo17-12-2 | 1.4401 | TC2 / TC1 | EN 10253-4 | X5CrNiMo17-12-2 | 1.4401 | EN 1092-1 | X5CrNiMo17-12-2 | 1.4401 | |
| EN 10217-7 | X2CrNiMo17-12-2 | 1.4404 | TC2 / TC1 | EN 10253-4 | X2CrNiMo17-12-2 | 1.4404 | EN 1092-1 | X2CrNiMo17-12-2 | 1.4404 | |
| EN 10217-7 | X2CrNiMoN22-5-3 | 1.4462 | TC1 | Duplex | EN 10253-4 | X2CrNiMoN22-5-3 | 1.4462 | EN 1092-1 | X2CrNiMoN22-5-3 | 1.4462 |
| EN 10217-7 | X1NiCrMoCu25-20-5 | 1.4539 | TC1 | Superaustenit | EN 10253-4 | X1NiCrMoCu25-20-5 | 1.4539 | EN 1092-1 | X1NiCrMoCu25-20-5 | 1.4539 |
| EN 10217-7 | X6CrNiTi18-10 | 1.4541 | TC2 | EN 10253-4 | X6CrNiTi18-10 | 1.4541 | EN 1092-1 | X6CrNiTi18-10 | 1.4541 | |
| EN 10217-7 | X6CrNiMoTi17-12-2 | 1.4571 | TC2 | EN 10253-4 | X6CrNiMoTi17-12-2 | 1.4571 | EN 1092-1 | X6CrNiMoTi17-12-2 | 1.4571 | |
| A312 | TP 304/L | seamless / welded | A403 / ANSI B16.9 | WP 304/L | A182 / ANSI B16.5 | F 304/L | ||||
| A312 | TP 304/H | seamless | A403 / ANSI B16.9 | WP 304H | A182 / ANSI B16.5 | F 304/H | ||||
| A312 | TP 316/L | seamless / welded | A403 / ANSI B16.9 | WP 316/L | A182 / ANSI B16.5 | F 316/L | ||||
| A312 | TP 321/H | seamless | A403 / ANSI B16.9 | WP 321/H | A182 / ANSI B16.5 | F 321/H | ||||
| A312 | TP 316Ti | seamless | A815 / ANSI B16.9 | F 316Ti | A182 / ANSI B16.5 | F 316Ti | ||||
| A790 | S31803 | Duplex / seamless | A403 / ANSI B16.9 | S31803 | A182 / ANSI B16.5 | F 51 | ||||
| A312 | TP 347/H | High temperature / seamless | A403 / ANSI B16.9 | WP 347/H | A182 / ANSI B16.5 | F 347/H | ||||
| A312 | N08904 | Superaustenit / seamless | A403 / ANSI B16.9 | WP 904L | A182 / ANSI B16.5 | F 904L | ||||
Pipes are available in single and double lengths.
Pipes, fittings and flanges are available in all standard and special – e.g. extremely thick-walled – dimensions.
SPECIAL MATERIALS
As an expert in the sector of Special Materials, supplies pipes, tubes, fittings and flanges made of duplex, nickel alloys, titanium and other special grades. These kind of materials are applied in the chemical process industry, in power engineering, the oil and gas industry and for the production of phosphate fertilizer and industrial furnaces as well.
| Material | Material grade | Material number |
|---|---|---|
| Alloy 200 | N02200 | 2.4066 |
| Alloy 201 | N02201 | 2.4068 |
| Alloy 400 | N04400 | 2.4360 |
| Alloy 600 | N06600 | 2.4851 |
| Alloy 625 | N06625 | 2.4856 |
| Alloy 718 | N07718 | 2.4668 |
| Alloy 800H | N08810 | 1.4876 |
| Alloy 800 HT | N08811 | 1.4876 |
| Alloy 825 | N08825 | 2.4858 |
| Alloy 926 | N08926 | 1.4529 |
| Alloy 20 | N08020 | 2.4660 |
| Alloy 31 | N08031 | 1.4562 |
| Alloy 59 | N06059 | 2.4605 |
| Zirconium 702 | R60702 | |
| Alloy B-2 | N10665 | 2.4617 |
| Allloy B-3 | N10675 | 2.4600 |
| Alloy C-4 | N06455 | 2.4610 |
| Alloy C-276 | N10276 | 2.4819 |
| Alloy C-22 | N06200 | 2.4602 |
| Alloy C-2000 | N06200 | 2.4675 |
| Titan Grad 2 | R50400 | 3.7035 |
| Titan Grad 5 | R56400 | 3.7165 |
| Titan Grad 7 | R52400 | 3.7235 |
| Duplex | S31803 | 1.4462 |
| Superduplex | S32750 | 1.4410 |
And all other special grades.
MECHANICAL TUBES
In addition to its traditional portfolio, we offers a wide selection of tubes for the mechanical engineering and construction sectors. Customers are machine and plant manufacturers or manufacturers of construction and agricultural machinery, but they can also be found in the areas of tool manufacturing and apparatus engineering. We also offer solutions for customers in the construction industry, in particular for bridges, cranes, anchorages and buildings.
For this purpose we offer quality solutions for seamless and welded hollow sections (round and square), precision steel tubes, hydraulic tubes, mother pipes for cylinder construction and thick wall tubes, for example as a substitute for round steel, in the materials listed below.
| Tubes for mechanical applications | ||
|---|---|---|
| E235 | E275 | E355 |
| E420 | E470 | E590 (QT) |
| 16MnCr5 | 20MnV6(QT) | |
| Tubes for mechanical applications (quenched and tempered steel) | ||
|---|---|---|
| 25CrMo4 | 42CrMo4 | C45 |
| C60 | ||
| Pipes for steel construction | ||
|---|---|---|
| S275J0H | S355J2H | S420MH |
| S460NH | S690QL | S890QL |
| S960QL | ||
